Design 2160 - American Jane II

American Jane II was built of aluminum by Walter Huisman of Vollenhove, Holland. She was designed to compete in the one-ton class. She was launched in 1973.

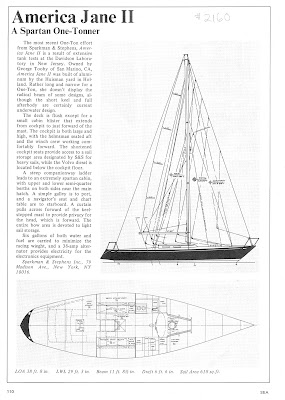

Here's an article from Sea magazine. Please double click for zoom.

And here's the general arrangement plan.

Principal Dimensions
LOA 38'-8"
LWL 29'-3"
Beam 11'-9"
Draft 6'-6"
Displacement 15,995 lbs
Ballast 6,800 lbs
Sail Area 618 sq ft
